Highlights of CardioSOFT Cardiovascular Analysis Software

  • Cardiosoft operates under the Windows 95 / 98 / NT operating systems
  • Graphical interface allows analysis of complex cardiac functions with a few button clicks
  • Easy configuration for repeated analysis
  • Comprehensive set of input signal definitions
  • Complete set of output calculations satisfy experimental and clinical requirements
  • Graphical and numerical display of data and calculations
  • ASCII text file and direct Printer output capability
  • Plot and display entire file or user-selected segments

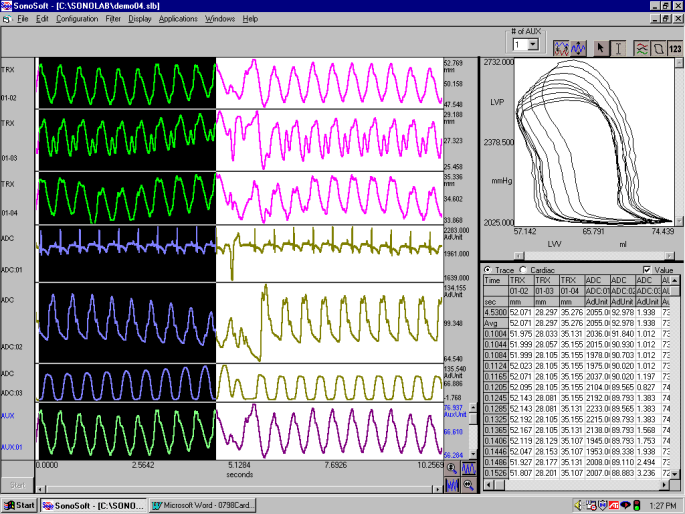

    • View of a typical data file showing combined data zones

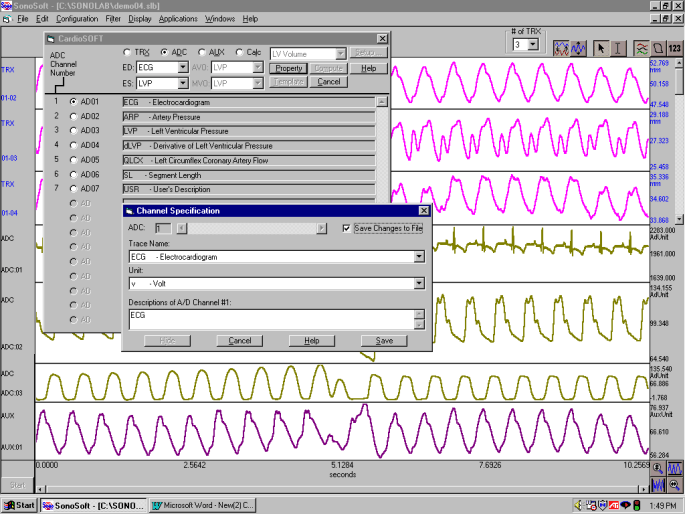

    View showing selection of signal identification

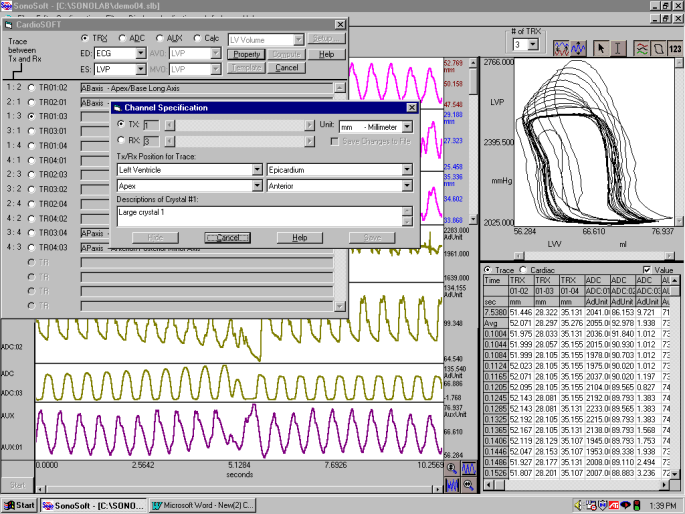

    View showing selection of sonomicrometer crystal locations

    View showing selection of ventricular volume formuas

    View showing selection of additional calculated parameters

    View showing selection of complex calculations (ESPVR, E-Max, Tau, etc)

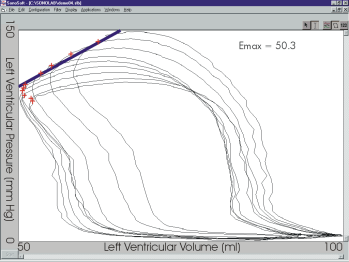

    View showing X-Y plot (P-V loops) with E-max calculation

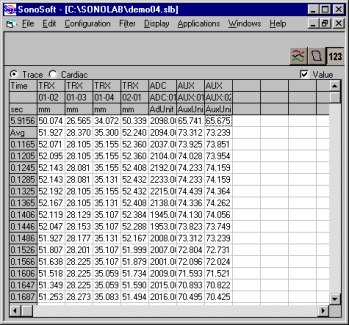

    View showing the numeric data zone

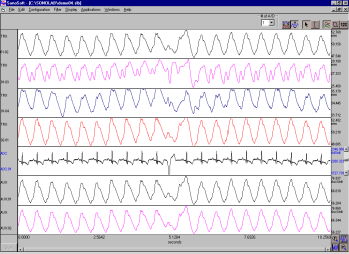

    View showing the data trace zone
